Geogrid

High Strength Polyester Geogrid PVC Coated

short description:

PET Geogrid is widely introduced to the various fields of civil engineering, transportation engineering, and environment issues.The reinforced steep slopes, reinforced retaining earth walls, reinforced embankments, reinforced abutments and piers are typical applications where geogrids are used.it is mainly applied in strengthening soft ground of road, highway, railway, port, slope, retaining wall, etc. The resulting grid structure possesses large openings that enhance interaction with filling material.


Product Detail
Product Tags

Product Introduction

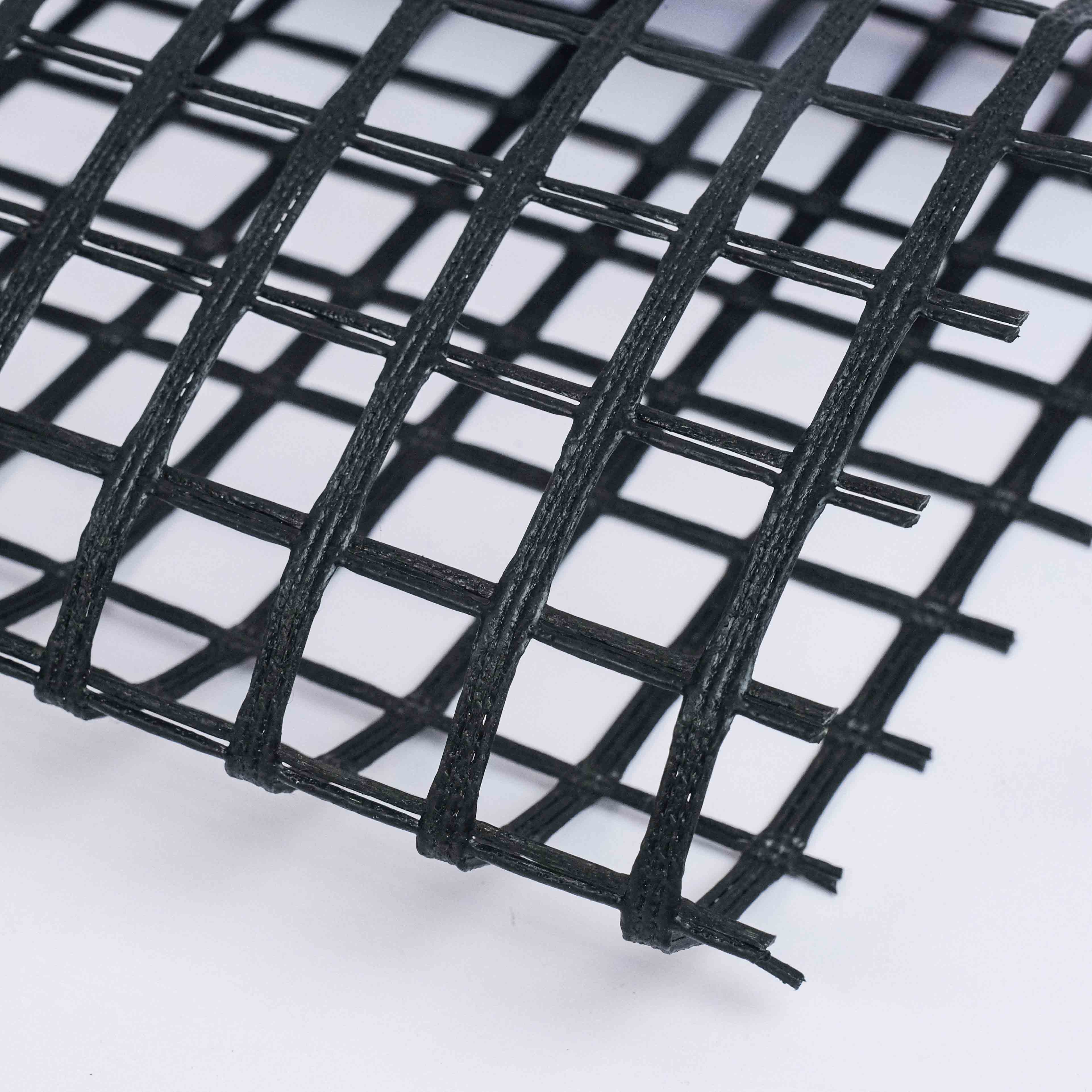

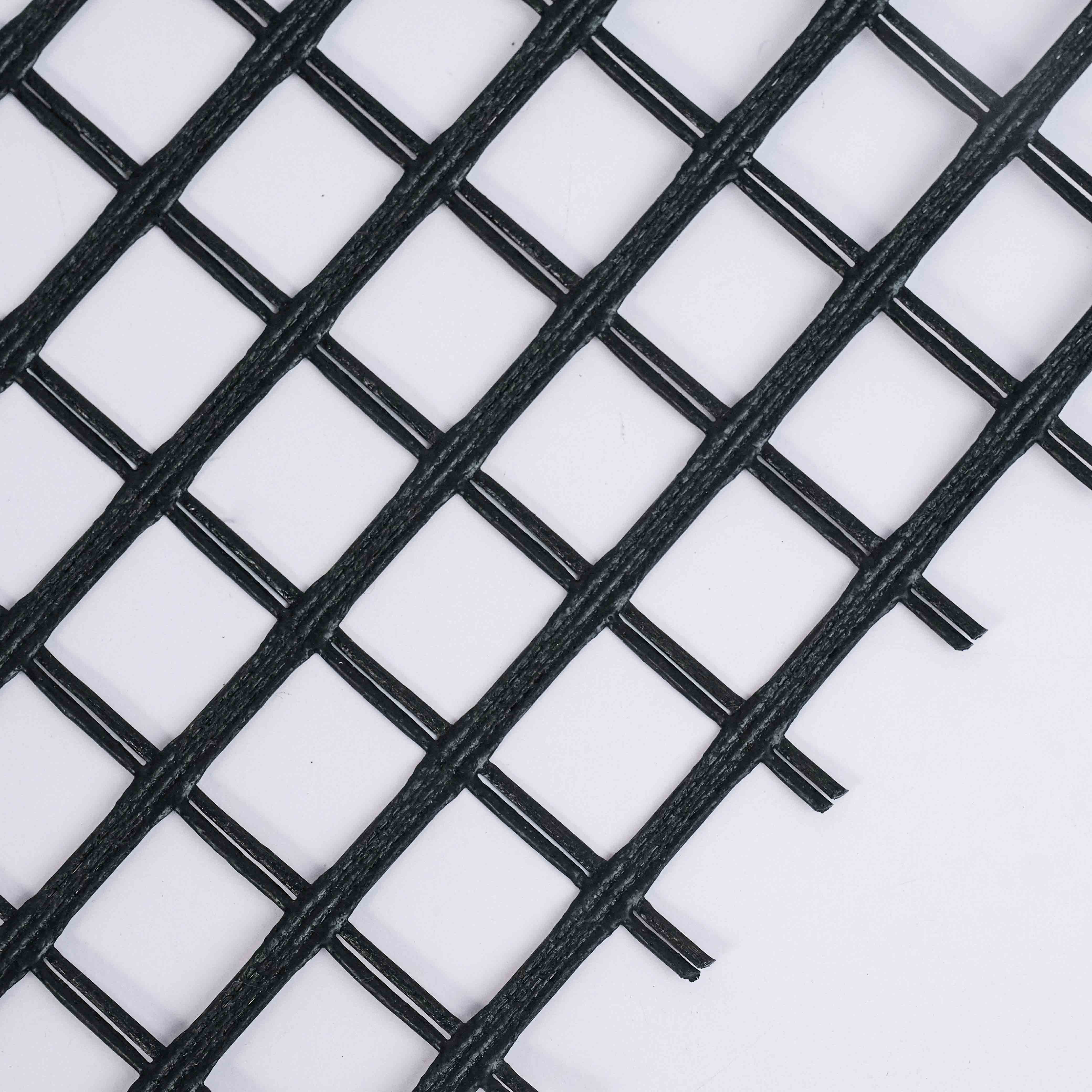

  • Using industrial high tensile strength polyester filament yarns to weave the base fabric by warp-knitted technology, then coating with PVC. It is widely used for the reinforcement of retaining walls, soft-soil foundation disposal and road foundation projects to increase the quality of the projects and reduce the costs of them.

    tensile strength

    (kn/m)

    Warp

    45



    Weft

    30

    Elongation

    10%

    Creep limit strength(KN/M)

    25

    Long-term design strength(KN/M)

    25

    Molecular Weight(Mn)

    >30000
